PS: If the motor wattage is much smaller than 90W, the motor will be very hot during working!

Specifications

Power supply: AC220V 50/60Hz

Rated power: 90W

Environment  temperature: - 10 ~ + 50°;

Relative humidity:<90%;

Speed regulation range: 90-1400r/min 50Hz, 90-1700r/min 60Hz

Weight: 295g

Features This motor speed controller is suitable for AC220V 50/60Hz motor. Speed regulation range is 90-1400r/min 50Hz, 90-1700r/min 60Hz Suitable for packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line for speed control drive devicesThe controller uses high quality electronic circuit and integrated components for durability.It has small size, high precision, wide speed controlling range, and long service life.

Method of use

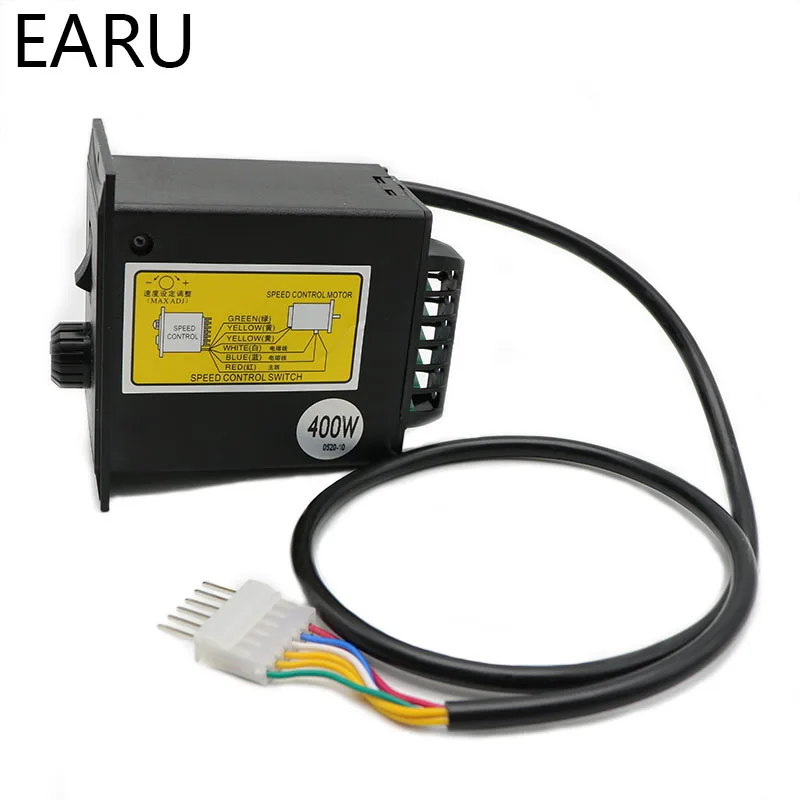

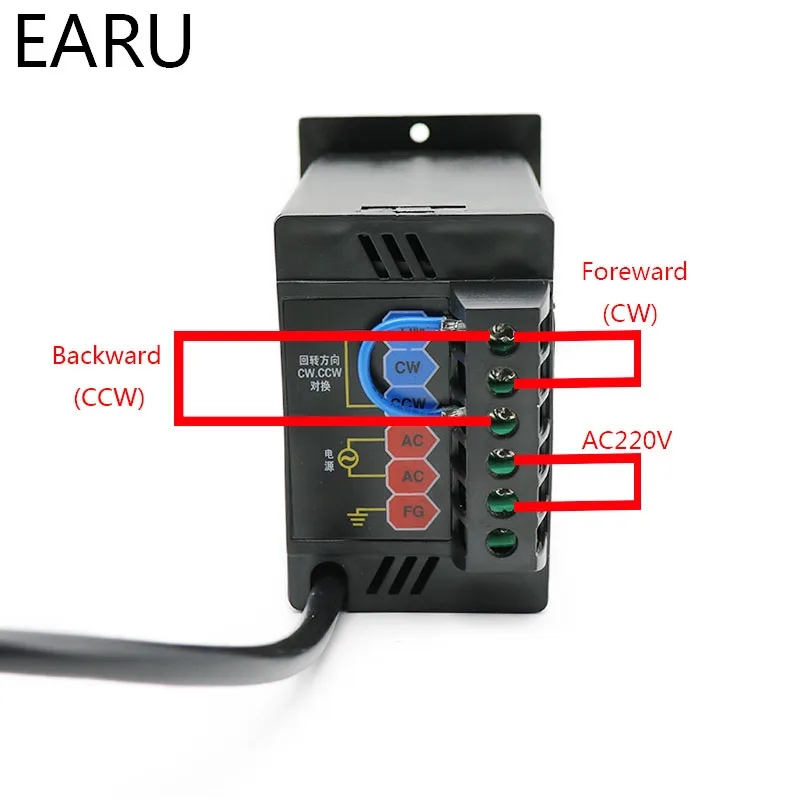

Wiring method

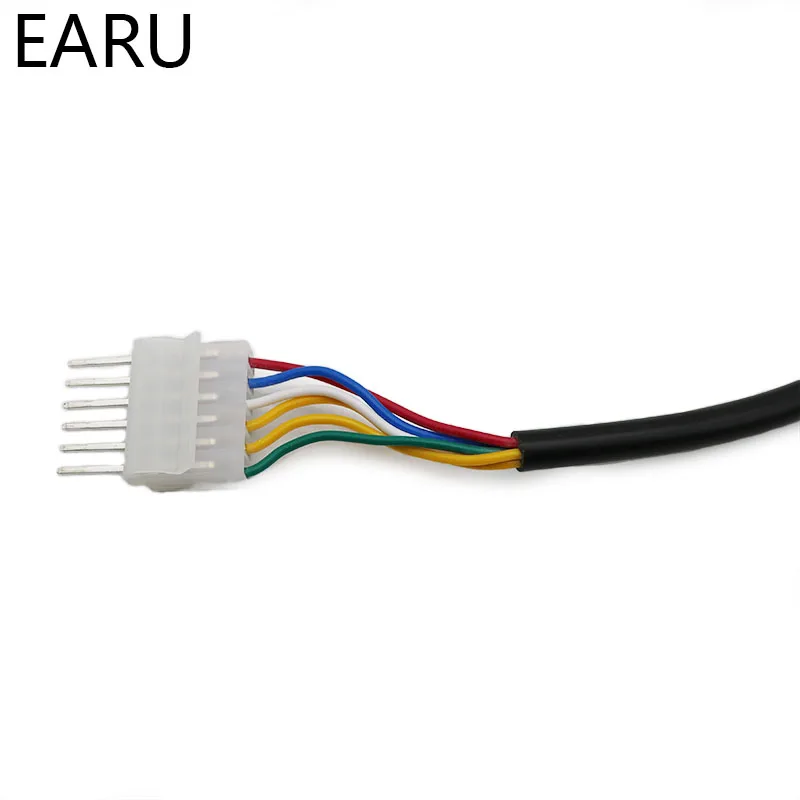

Black wire is the motor main wire, red and white are the capacitor auxiliary wires, and 2 blue wires are the speed control feedback wires, the green wire is the ground wire.

Package includes

1 x Speed Controller
